Here you can read user manuals for each product listed below. If you don’t find the answer here feel free to submit us a ticket or call us at (014) 337 9460 (Mon - Fri 8-16:30).

Kiitos, että olet valinnut laadukkaan Fenix tuotteen. Tässä käyttöohjeessa olevat käyttöä ja turvallisuutta koskevat ohjeet auttavat sinua hyödyntämään tuotetta mahdollisemman tehokkaasti. Lue käyttöohje huolellisesti ennen tuotteen käyttöä. Hävitä pakkausmateriaalit asianmukaisesti.

Tuoteominaisuudet

  • Tukee verkkovirtalatausta AC100-240V/50-60Hz tai autolatausta DC12-24V ulkoisesta sähkövirrasta.
  • Virransyöttö 6W (Ni-MH/Ni-Cd), 16.8W (Li-Ion).
  • Virransyöttö ladattaessa akkuparistoja:
    4.2V/1.0A: 10440, 14500,16340,21700,26650 (Li-Ion)
    1.5V/1.0A: AA,AAA,C (Ni-MH/Ni-Cd)
  • Mitat: 149,5 x 104 x 40,5 mm.
  • Paino 265 g (ilman latauskaapelia).
  • Käyttölämpötila: -20 °C - 50 °C.
  • Käyttökosteuspitoisuus alue:  5% - 90%.
  • Varastointilämpötila: -20 °C - 80 °C.

Turvallisuusmerkinnät

Täyttää standardin vaatimukset: UL, PSE, GS, FCC, CE, RoHS, WEEE, CB.


Käyttö

1. Paristojen asentaminen

- Tarkasta ennen asentamista että paristojen napaisuus vastaa laturissa esitettyjä napaisuussuuntaa.

Huomio! Lataa vain ladattavia paristoja, älä koskaan lataa paristoja joita ei ole tarkoitettu ladattavaksi.

2. Paristojen lataaminen ja näyttöyksikkö

- Leveämpi latausportti jossa kaksi ovaalinmuotoista aukkoa on tarkoitettu AC verkkovirtalataukseen (100-240V). Pyöreän muotoinen latausportti on tarkoitettu DC ajoneuvolataukseen (12-24 V).

- Liitä sopiva latauskaapeli latausporttiin; laitteen LCD näyttöyksikkö käynnistyy. Aseta paristot latauslaitteeseen. Huomioi polarisaatiosuunnat. LCD näyttö näyttää latauksen tilan sekä akun varaustason näytön akkusymbolissa.

Akkupariston tila näytetään LCD-näyttöyksikössä näytön akkusymboli-kuviossa. Mikäli laitteeseen ei ole kytketty virtaa akkupariston tilaa ei näytetä eikä laturi voi tunnistaa akkua.

Pariston akkusymboli-kuviolla näytetään akun varaustila seuraavasti:

  • Yksi vilkkuvaa valo: akun kapasiteetti: alle 20%
  • Yksi jatkuvasti päällä olevaa valoa: akun kapasiteetti: 20%-40%
  • Kaksi jatkuvasti päällä olevaa valoa: akun kapasiteetti: 40%-60%
  • Kolme jatkuvasti päällä olevaa valoa: akun kapasiteetti: 60%-80%
  • Neljä jatkuvasti päällä olevaa valoa ja yksi vilkkuva valo: akun kapasiteetti: yli 80%
  • Viisi jatkuvasti päällä olevaa valoa: akun kapasiteetti: täysin latautunut

a) Latauksen aikana näytetään latausjännite ja akun tyyppi (Li-Ion tai Ni-MH/Ni-Cd) siinä latauskanavassa jossa akkua ladataan.
b) Jokaisen latauskanavan virtamäärä on enintään 1A / latauskanava. Latauksen aikana virtamäärä on hieman alempi kuin 1A.
c) Jokaista neljää latauskanavaa voidaan käyttää erikseen ja ne ovat toisistaan riippumattomia. Tästä syystä latauksen aikana voidaan vaihtaa eri täyttöasteen akkuja latauslaitteeseen.

3) LCD-näyttöyksikkö

a) LCD-näyttöyksikkö käynnistyy kun latauslaitteeseen yhdistetään virta. Mikäli latauslaitteessa on akku näytetään akun lataustila. Mikäli akkua ei havaita näytetään vain latauksen paristosymboli jonka jälkeen näyttö sammutetaan 30 sekunnin kuluessa. Painettaessa latauskanavan edessä olevaa painiketta (A, B, C tai D) voidaan näyttö käynnistää uudestaan.

b) kaikkia neljää toisistaan erillään toimivaa latauskanavan näyttöä voidaan ohjata omilla painikkeellaan jotka ovat näyttäyksikön alaosassa. Paristo tyyppi ja jännite näytetään heti akkupariston asentamisen jälkeen. Painettaessa näppäintä yhden kerran voidaan näyttötilaa vaihtaa järjestyksessä: Jännite V →  Latausvirta mA → Latausaika. Painettaessa mitä tahansa latauskanavan painiketta pitkään yhtäjaksoisesti voidaan näyttöyksikkö sammuttaa. Painettaessa mitä tahansa latauskanavan painiketta lyhyesti uudelleen voidaan näyttö jälleen käynnistää. Tämän jälkeen näyttöyksikkö näyttää latausjännitteen V.

4) Oikosulkusuojaus

Mikäli akussa havaitaan oikosulku lataaminen keskeytetään automaattisesti.

5) Käänteisen polarisaation suojaus

Mikäli akkuparisto on asetettu lataussuunta väärinpäin latauslaitteeseen ei latausta aloiteta ja näytössä lukee ”Err” niin pitkän ajan kunnes akku asetetaan lataussuunta oikein päin.

6) Ylilatauksen suojaus

Akkuparistojen ollessa täyteen ladattuja näytetään LCD-näytön latausjännitteenä 0.

Huomio! on tavanomaista, että akkujen lämpötila latauksen aikana on alle 55 °C. Suurella latausvirralla ladattaessa akkuparistot voivat kuumentua, ole varovainen kun käsittelet kuumia akkuparistoja.

TÄRKEÄÄ

  1. Tämä latauslaite on tarkoitettu lataamaan vain siihen tarkoitettuja akkuparistoja Li-Ion, Ni-MH ja Ni-Cd paristoja. Muun tyyppiset paristot voivat aiheuttaa ladattaessa palo-ja räjähdysvaaran ja akun vuotovaaran sekä voi aiheuttaa vammoja ihmisille tai vahingoittaa omaisuutta.
  2. Käytä latauslaitetta vain normaaleissa olosuhteissa valvonnan alaisena ja katkaise latausvirta heti akkujen latauduttua.
  3. Aseta ladattavat akkuparisto aina lataussuunta oikein päin (latausuunta kerrottu latauslaitteessa).
  4. Älä koskaan pura tai tee muutoksia latauslaitteeseen tai käytä sitä mihinkään muuhun käyttötarkoitukseen.
  5. Pidä latauslaite poissa lasten ulottuvilta. Lasten tulee käyttää latauslaitetta vain aikuisen valvonnassa.
  6. Takuuaika yksi (1) vuosi.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Battery Insertion

Keep the battery polarity markings in conformity with the charger markings (Only charge the allowed battery, and never charge non-rechargeable battery).

Battery Charging

Charging status and battery level. And the the battery icon on the screen will blink for 8 seconds, corresponding charging current can be selected within the 8 seconds by single clicking the A or B button.

The A channel is for common charging, and B channel is for fast charging, the rated charging current of both channels is 1.0A.

Li-ion battery – when A&B channels or only A channel is inserted with battery: 0.5A and 1.0A can be selected by single clicking corresponding button; when only B channel is inserted with battery: 0.5A, 1.0A and 2.0A can be selected by single clicking B button.

Ni-MH/Ni-Cd battery – 0.5A and 1.0A can be selected for A or B channel by single clicking corresponding button.

A and B channels work independently due to the independent working circuits, while subtle difference exists. It is normal for ongoing charging within a short time if two fully-charged batteries exchange the channel.

Note: It is normal for the battery temperature to be below 55°C during charging, but due to the high charging current, the battery may heat, so be careful of scalding.

There will be no trickle charging if Li-ion battery is fully charged to prevent overcharging. There will be trickle charging of 3-5mA of Ni-MH/Ni-Cd battery to ensure it is fully charged.

Battery Discharging

B channel with inserted battery features discharging function, while A channel doesn’t.

After the rechargeable battery is inserted in B channel, connect the USB port of the charging device to the port of the charger’s to start discharging. The maximum discharging current is 2A.

When discharging, press and hold the button over 2 seconds, the “USB 5V” icon on the LCD display will continue to flash. At this time, the charger unlocks the small current (about 100mA) discharging mode, press the button again over 2 seconds, the “USB 5V” icon is always on and the small current discharging mode is limited.

The LCD screen will display the current battery level and voltage during the discharging process.

This charger only works with Li-ion battery discharging. When it is charging a battery, the discharging function will be locked. When charging is stopped, the USB discharging function is unlocked and can be used for external devices.

LCD Screen Display

The LCD screen will display for 2 seconds after connecting to the power supply. (Pic2)

If there is no battery in the channel, 2 seconds later, the LCD screen will only display the battery symbol, and then the screen will go out after 30 seconds. Single click any button, the screen will be lit up with the battery symbol displayed.

The battery type, capacity and charging status will be displayed after battery insertion. Single click the corresponding button to select charging current during the 8 seconds with the battery symbol displayed. Then single click the button – the screen will cycle through charging current (mA)→battery voltage (V)→charging capacity (mAh)→charging time (T). Press and hold the button over 2 seconds to turn off the LCD screen. Single clicking the button again will turn on the LCD screen.

Battery Level Indication

The charger will automatically detect the battery level with battery inserted and connected to the power source. The battery level will be displayed on the LCD screen through battery status bar, and then charging will start. If there is no power connected, the battery level can only be detected and displayed in B channel with battery inserted.

Battery level will be displayed as follows by the battery status bar:

  • One flashing, four off: less than 20%
  • One bar constant-on, one flashing, three off: 21% – 40%
  • Two bars constant-on, one flashing, two off: 41% – 60%
  • Three bars constant-on, one flashing, one off: 61%- 80%
  • Four bars constant-on, one flashing: more than 81%
  • Five bars constant-on: fully charged

Short-circuit Protection

If a short-circuit is detected, charging will autostop.

Reverse Polarity Protection

If the battery is inserted the wrong way, charging will not begin.

Overcharge Protection

When fully charged, the charging current on the LCD screen will be displayed as 0.

Attention

  • Only intended for rechargeable Li-ion batteries, Ni-MH and Ni-Cd batteries. Other types of batteries may cause battery breach, leakage or explosion, and can cause damage to people and property.
  • Use the battery charger in normal working conditions and cut off the power completely after usage.
  • Insert the battery properly.
  • Do not dismantle or modify the charger or use it for any other purpose.
  • Keep the charger out of reach of children. Children should use the battery charger only under adult supervision.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Operation instructions ①

On/off
Press and hold the switch for 0.5 seconds to turn on/off the light.

Output Selection
With the light switched on, single click the switch to cycle through Low→Low Flash (slow)→Low Flash (fast)→High→High Flash (slow)→High Flash (fast).

Charging ②

Operation: Remove the dust cover of the bicycle taillight to reveal the charging port, and plug the USB Type-C end of the charging cable into the light’s charging port, then connect the other end of the charging cable to a USB power adapter.

Indication: The indicator will display red while charging and will turn green when fully charged.

Battery level Indication

With the light switched off, single click the switch to check the battery status, the indicator in the switch will last for 3 seconds.

  • Green light on: saturated 100% – 85%
  • Green light flashes: sufficient 85% – 50%
  • Red light on: poor 50% – 25%
  • Red light flashes: critical 25% – 0%

Low-voltage Warning

When the voltage level drops below 25% of the total level, the battery level indicator blinks red to remind you to timely recharge the battery. To ensure normal use, the light will not turn off automatically and will work till the battery level runs out.

Mounting Instruction

Mounting strap: First loop the mounting strap (without LOGO) around the small opening of the taillight, and place the taillight on the seat post (face up), then loop the other end of the mounting strap (with LOGO) around the other small opening of the taillight, adjust as the size of the seat post.

Body clip: Keep the body clip and the taillight both face up, push the small opening on both sides of the taillight downward to the spout of the body clip.

Note: The bicycle light is applicable to bike seat post diameters between 20 mm-35 mm.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the light and will void the warranty.
  • Recharge the light timely when the battery level is critical, for future use.
  • Recharge a stored light every 3 months to maintain optimal battery performance.
  • Periodic cleaning improves the light’s performance especially when the light flickers, shines intermittently or even fails to illuminate for the following reason:
  • A: Poor battery level.
  • Solution: Recharge or replace the battery.
  • If the above methods don’t work, please contact your authorized distributor.

Included

BC05R V2.0 rechargeable bicycle tail light x 1 pcs, type-C charging cable x 1 pcs, bicycle mounting strap x 1 pcs, body clip x 1 pcs, user manual

Warning

The taillight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the light directly into anyone’s eyes.

The LED of this taillight is not designed to replaceable; so the entire light should be replaced when the LED reaches the end of its life.

If any of the information provided in this manual is changed, the new version of the manual shall prevail; if your included user manual is an old one, it acquiesces that we won’t send a new manual.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.


Operation instructions ①

On/off
Press and hold for 0.5 seconds to turn on/off the bicycle light.

Output Selection
With the light switched on, single click the switch to cycle through Low→Med→High→Turbo.

Flash
With the light switched on, double click the switch to enter Flash mode, single click to turn back to previous state.

Charging ②

Operation: With the light switched off, remove the dust cover of the bicycle light to reveal the charging port, and plug the Micro USB end of the USB cable into the light’s charging port, then connect the other end of the USB cable to a USB power adapter.

Charging Indicator: The indicator near the switch will display charging status. Green light will remain constant on when the battery is fully charged. (Only Low output can be used while the light is being charged; the normal charging time is about 2.5 hours with the light switched off.)

Battery level Indication

With the light switched off, single click the switch to check the battery status. The indicator will display the battery status for 3 seconds.

  • Green light constant on: saturated, 100% – 70%
  • Orange light constant on: sufficient, 70% – 40%
  • Red light constant on: critical, 40% – 10%
  • Red light flashes: poor, 10% – 0%

Battery Specifications

TypeDimensionsNominal VoltageUsability
Fenix ARB-L18 Series
186503,6V / 3,7V
Recommended
Non-rechargeable Battery (Lithium)
CR123A
3V
Usable

Rechargeable Battery (Li-ion)

186503,6V / 3,7V
Caution

Rechargeable Battery (Li-ion)

16340
3,6V / 3,7V
Banned

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Quality batteries with circuit protection will reduce the potential for combustion or explosion but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement ④

Unscrew the battery cover and insert the battery with the anode side (+) towards the light head, then screw the battery cover back on.

Low-voltage Warning

When the voltage level drops below the preset level, the indicator blinks red to remind you to recharge the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery level runs out.

Overheat Protection

The light will accumulate a lot of heat when used on Turbo for extended periods. To ensure safe use, the light will automatically step down a few lumens to reduce the temperature. When the temperature is reduced, Turbo mode can be reselected.

Usage and Maintenance

  • Recharge the light timely when the battery level is critical, for future use.
  • Recharge a stored light every three months to maintain optimal battery performance.
  • The light will accumulate a lot of heat when working on Turbo mode. Do not touch the heat dissipation fins.
  • Remove the battery if the light will not be used for a long time.
  • Once charging is completed, be sure to remove the charging cable and replace the dust cover.

Included

BC21R V2.0 bike light x 1, Fenix ARB-L18-2600 rechargeable Li-ion battery x 1, Quick-release bicycle mount x 1, USB Type-C charging cable x 1, Spare O-ring x 1, Bicycle mounting shim (thick) x 1, Bicycle mounting shim (thin) x 1, user manual.

Warning

This light is a high-intensity lighting device capable of causing severe eye damage. Avoid shining the light directly into anyone’s eyes.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.


Operation instructions ①

Switches
Functinal switch

On/Off
Press and hold the functional switch for 0.5s to turn on/off the light.

Output selection
With the light switched on, single click the functional switch to cycle through EDC/Eco→Low→Med→High.

Flash
With the light switched on, double click the functional switch to enter flash mode; single click the functional switch again to exit flash mode.

Wireless Remote Switch ②

Switches:
Output selection switch
Burst


Connection with BC30 V2.0
First Connection
Press and hold the functional switch for 5 seconds, and the switch will flash red and green alternately, then single click any switch of the wireless switch, the bicycle light will light up to indicate connection is completed.

Note:

  1. After the first connection, the wireless remote switch automatically memorizes the paired status. There is no need to match again afterwards.'
  2. The linear distance between the light and the wireless switch should not exceed 1.5 meters during the pairing process.

Output Selection
With the light switched on, press and hold the output selection switch for 0.5s to enter/exit standby status, single click to cycle through EDC/Eco→Low→Med→High. And the light will automatically shut down after 10 minutes standing by if without any operation.

Instant Burst
With the light switched on, single click burst switch to enter Burst mode of 2200 lumens, which will last up to 30s. In 30s, single click any switch to exit Burst mode.

Note: If the current battery is low, it will light up with the highest brightness supported by the current battery level.

Battery replaceable
Insert the coin into the back of the wireless switch, rotate the coin counterclockwise to open the battery cover; and then insert the battery, and tighten the back cover clockwise.

Note: Change the CR1632 button battery every 3 months.

Battery level Indication

With the light switched off, single click the functional switch to check the battery status. The  battery status percentage on this bright bike light will be displayed, and then goes out in 3 seconds.

  • Green light constant on (saturated): 100% – 80%
  • Orange light constant on (sufficient): 80% – 40%
  • Red light constant on (poor): 40% – 10%
  • Red light flashes: 10% – 0%

Battery Specifications

TypeDimensionsNominal VoltageUsability
Fenix ARB-L18 Series
186503,6V / 3,7V
Recommended
Non-rechargeable Battery (Lithium)
CR123A
3V
Usable

Rechargeable Battery (LiFePO4)

163403,2 V
Usable

Rechargeable Battery (Li-ion)

18650
3,6V / 3,7V
Caution*

Rechargeable Battery (Li-ion)

16340
3,6V / 3,7V
Banned

Rechargeable Battery (LiFePO4)

18650
3,2V
Banned

Warning: Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or the batteries being used.

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Quality batteries with circuit protection will reduce the potential for combustion or explosion but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement

  1. Loosen the screw of the bike mount. Fix the bike mount in the desired position on the bike handlebar and fasten the screw.
  2. Loosen the fine adjustment screw of the handlebar mount before clamping the mount to the bar by securely tightening the set screw. Slide the light into the mount until a distinct “click” is heard.
  3. Fasten the cable of the wireless switch to the desired position on the bike handlebar.

Note:

  1.     Adjust the direction of the light before testing the power and functions of the bicycle light.
  2.     Use the shims provided according to the diameter of the bicycle’s handlebars.
  3.     Thick + thin shims together: diameter 22-28mm.
  4.     Thin only: diameter 28-32mm).
  5.     No shim (whenever applicable): diameter 32-35mm.
  6.     The bicycle light can be used on a helmet with the Fenix bicycle light helmet holder.

Low-voltage Warning

The functional switch will flash red to remind to replace the batteries when the voltage level drops below a preset level. The bicycle light is programmed to step down a few lumens to prolong the runtime and the light will not turn off automatically.

Note: This may not work if 4*CR123A batteries are being used.

Overheat Protection

The light will accumulate a lot of heat when working on High mode for extended periods. When the light reaches a temperature of 65°C, the light will automatically step down a few lumens to reduce the temperature. High mode can be re-selected if needed. This is a very bright bike light.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the light and will void the warranty.
  • Replace the battery in time to ensure normal use for next time.
  • If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.

Included

BC30 V2.0 bicycle light, bicycle mount, wireless switch, CR1632 button battery, bicycle mounting shim (thin/thick), spare o-ring, user manual.

Warning

This light is a high-intensity lighting device capable of causing severe eye damage. Avoid shining the light directly into anyone’s eyes.

This light will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.


Bicycle Light ①

  • Press and hold the for 0.5 seconds to turn ON/OFF the light, with the light on, the light will display Fenix boot screen, then automatically check the remaining battery level and runtime.
  • With the light switched on, double click the to enter Flash mode, click once again any switch, the light will return to general mode.
  • With the light switched on, single click to turn up output levels, one press for a higher level until to the supported highest. Single click to turn down output levels, one press for a lower level until to the lowest.
  • With the light switched off, press to check the battery level, the light will go out automatically after 5 seconds.

Remote Pressure Switch ②

  • Press and hold the switch for 0.5 seconds to turn ON/OFF the light, the light will display Fenix boot screen, then automatically check the remaining battery level and runtime.
  • With the light on, click the switch, to cycle through High→Eco→Low→Med.
  • In any status, press the switch to enter the supported highest brightness at current battery level, release the light will return to previous status, press and hold the switch for constant 20-second illumination (with sufficient battery level), then the light will return to previous status.
  • With the light switched off, click the switch to check the battery level, the light will go out automatically after 5 seconds.
Note:
  • The light will accumulate a lot of heat when used on High output level for extended periods. it will automatically downshift to reduce temperature.
  • The light memorizes the last selected brightness level on General mode. When turned on again the previously used brightness level will be recalled.
  • When the battery power level is not sufficient, higher brightness levels can not be activated, the bicycle light is programmed to cycle through lower brightness levels.
  • Low Power Warning and Intelligent Output Downshift
  • Low Power Warning: With the light on, when the runtime is less than 30 minutes, the switch will blink red constantly, to remind you to downshift to a lower brightness level to extend runtime or to recharge the bicycle light ASAP.

Intelligent Output Downshift
If non-stop use is needed, the light will downshift to a lower output level to extend runtime. When the light downshifts to Flash mode, indicating it will go out soon. Stop riding and replace the battery or bicycle light.

Charging ③

One standard Micro USB charging cable is included, which can be used for charging other digital devices.

Operation: Remove the anti-dust plug of the bicycle light to reveal the charging port, and plug the Micro USB end of the USB cable into the light’s charging port, then connect the other end of the USB cable to a USB power adapter.

Charging Indicator: The indicator light on the switch flashes green to indicate charging. Then turns solid green when the battery is fully charged. Fenix recommends using a power adapter with output of 5V, 1.5A. It takes about 5 hours to fully charge the bicycle light.

Note:
  • Once charging is completed, be sure to remove the charging cable and replace the anti-dust cover.
  • Using the bicycle light when charging is not recommended by Fenix. But it is possible for emergency, the bicycle light can only be used on Eco output when charging, but the charging time will be prolonged or the battery will be less charged.
  • Mounting Instruction.
  • Bicycle Light and Remote Switch.
  • Open the rubber seal under the bicycle light and plug the cable of the remote pressure switch into it.
  • Loosen the fine adjustment screw of the handlebar mount before clamping the mount to the bar by securely tightening the set screw.
  • Slide the headlight into the mount until an audible “click” is heard.
  • Attach the Remote Switch to your bars where it is easy to operate, using the Velcro strap provided.

Mounting Instruction

Bicycle Light and Remote Switch
  1. Open the rubber seal under the bicycle light and plug the cable of the remote pressure switch into it.
  2. Loosen the fine adjustment screw of the handlebar mount before clamping the mount to the bar by securely tightening the set screw.
  3. Slide the headlight into the mount until an audible “click” is heard.
  4. Attach the Remote Switch to your bars where it is easy to operate, using the Velcro strap provided
Note
  • Adjust the direction of the headlight before testing the power and functions of the bicycle light.
  • Use proper shim provided to the size of the bicycle’s bars. (Thick + thin shims applicable size: 22-28mm, thin applicable size: 28-32mm). With no shim: 32-35mm.

Safety tips

  • The bicycle light is a high-intensity lighting device capable of causing eye damage. Avoid shining the light directly into the eyes.
  • Avoid touching the metal parts of the bicycle light as LED lights accumulate heat when powered up.
  • Waterproof to IP66, the bicycle light can be used in humid conditions but not for water immersion.
  • Please keep it out of the reach of children.
  • Disassemble the sealed parts may cause damage to the bicycle light and will void the warranty.
  • For safe transportation, the bicycle light is not fully charged. Recharge before first use.
  • Store the bicycle light in cool, dry and well-ventilated areas if it will not be used for an extended period of time. And recharge the bicycle light if it has not been used for an extended period of time.

Night Riding Tips

  • Never ride alone.
  • Always let someone know where you are.
  • Wear a helmet and reflective clothing.
  • Take auxiliary lights and emergency supplies.
  • Make sure the headlight, bicycle mount and the other accessories are securely fastened.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Operation instructions

ON/OFF

Press and hold the switch for 0.8 seconds to turn ON/OFF the camp lantern.Output Selection

When the lantern is on, single-click the switch to cycle through Eco→Low→Mid→High→Turbo

With the lantern on, double-click the switch to enter into Flash mode and single-click to turn back to previous state.

The camp lantern only lights up at Mid output when being charged.

Battery Level Indicator

With the light off, single-click the side switch to enter power display. The number of the constant-on light shows the battery power. One shows the battery power is less than 35%, two constant-on show the range 36%-60%, three constant-on show the range 61%-85%, four constant-on show the battery power is over 85%. The indicator light will go out after 8 seconds.

Intelligent Memory Circuit

The lantern memorizes the last-used brightness level in General Mode. Next time you turn it on, it will recall the previously used brightness level in General Mode.

Low-voltage Warning Function

When the voltage level drops below the preset level, the indicator light on the switch blinks to remind you to recharge the camp lantern or replace the battery. To ensure normal use, the camp lantern will not turn off automatically until the battery runs out.

Note: This only works on 18650 Li-ion batteries with button top.

Charging

To Charge the CL30R: When charging, connect the USB cable to a USB power adaptor (sold separately), and remove the anti-dust plug at the top of the camp lantern to reveal the charging port and plug the Micro-USB end of the USB cable into the light’s charging port. Then the indicator light on the switch turns red to indicate the charging process has begun. The indicator turns solid green when the battery is fully charged. Fenix recommends using a power adaptor with output 5V, 1.5A. It takes about 8.5 hours to fully charge three 2600mAh Fenix ARB-L18-2600mAh 18650 Li-ion batteries.To Charge other DevicesThe camp lantern can be connected to USB cables for digital products such as mobile phones with standard Micro-USB charging port.

Note: 1. Once charging is completed, disconnect the USB cable from the lantern and be sure to secure the anti-dust plug covered.

Please do not charge the camping lantern when the light is turned on, doing so will extend the charging time or the battery can not be fully charged. If emergency lighting needed, the camp lantern only lights up at Mid output when being charged.

Battery Replacement

  • Unscrew the battery cover counterclockwise
  • Insert the battery with the anode side (+) toward the light’s head
  • Put the battery cover back on and screw it clockwise to secure it
  • Note: The camping lantern is shipped with Fenix 2600 mAh ARB-L18-2600 18650 rechargeable Li-ion battery. Please remove the battery insulation tab before first use.

Battery Specifications

TypeDimensionsNominal VoltageUsability
Fenix ARB-L18 Series186503,6V / 3,7VRecommended
Non-rechargeable Battery (Lithium)CR123A3VCaution

Rechargeable Battery (Li-ion)

163403,6V / 3,7VBanned

Rechargeable Battery (Li-ion)

186503,6V / 3,7VCautions

Rechargeable Battery (LiFePO4)

186503,2VBanned

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Quality batteries with circuit protection will reduce the potential for combustion or explosion but cell damage or short circuiting are potential risks the user assumes.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the light and will void the warranty.
  • Fenix recommends using excellent quality battery. If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage or battery explosion.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the flashlight’s performance as dirty contacts may cause the flashlight to flicker, shine intermittently or even fail to illuminate for the following reasons:
  • Reason A: The batteries need replacing.
  • Solution: Replace batteries (Please confirm the correct installation of anode and cathode).
  • Reason B: The threads, PCB board contact or other contacts are dirty.
  • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.If the above methods don’t work, please refer to the warranty policy before contacting your authorized distributor.

Included

CL30R camping lantern x 1 pcs, spare O-ring for water seal x 1 pcs, Micro-USB cable x 1 pcs, Fenix ARB-L18 2600 mAh 18650 rechargeable Li-ion battery x 3 pcs, user manual.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Operating

On / Off
Press and hold the switch for 0.5 seconds to turn on/off the light.

Red light
Press and hold the switch for 1.2 seconds to turn on the red light.

Output Selection
White light: single click the switch to cycle through Eco→Low→Med→High.

Red light: single click the switch to cycle through Red→Red Flash.

Lock/Unlock

Lock: with the light switched off, double click the switch to lock the light, the light will blink twice on Low to indicate locked status.

Unlock: with the light locked, double click the switch, the light will be unlocked and activated on Low.

In locked status, clicking or pressing the switch will activate 2 one-second blinks on Low to indicate locked status.

Charging

  1. First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
  2. The indicator will display red while charging, and will turn to green when fully charged.
  3. Once charging is completed, be sure to close the anti-dust cover.

Note:

  • The normal charging time is approximately 1 hour and 20 minutes from depletion to full charging.
  • Recharge a stored light every four months to maintain optimum performance of the battery.

Battery level indication

With the light switched off, single click the switch to check the battery status. The battery level indicator will display the battery status for 3 seconds.

  • reen constant on: saturated (100% – 70%).
  • Green flashes: sufficient (70% – 40%).
  • Red constant on: poor (40% – 10%).
  • Red flashes (2Hz): critical (10% – 1%).

Note: The battery status will be displayed each time the light is switched on.

Intelligent Protection

The light will accumulate a lot of heat when used on High output level for extended periods. To reduce the temperature, the light will automatically step down a few lumens. High output level can be reselected if needed.

Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens on Eco output mode, the battery level indicator blinks red to remind you to recharge the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery is depleted.

Usage and Maintenance

  • Disassembling the flashlight can cause damage to the light and will void the warranty.
  • Fully charge the light in time to ensure normal use next time.
  • Recharge a stored light every four months to maintain optimum performance of the battery.
  • Once charging is completed, be sure to close the anti-dust cover.

Package includes

E03R flashlight, USB type C-charging cable, integrated 200 mAh Li-Polymer battery, key chain, user manual.

Warning

This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.

This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.

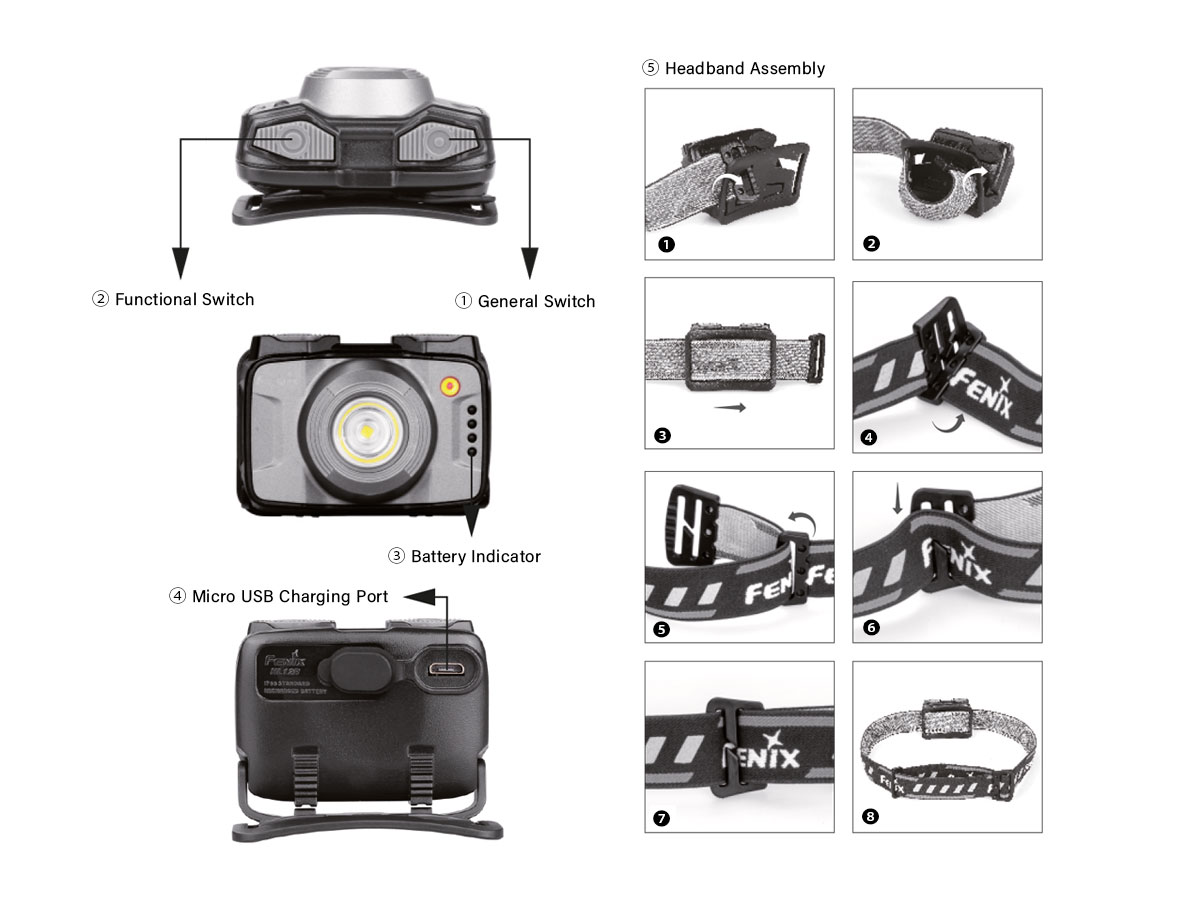

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.


Switches

General: controls General mode, output selection and mode switching
Functional: controls Functional mode, output selection and mode switching

General Mode ①
ON/OFF
Press and hold the General switch for 0.5 seconds, the lamp will be activated at Eco (no memory circuit), press and hold any switch for 0.5 seconds to turn off the lamp.

Output Selection
With the lamp switched on, single click the General switch to cycle through Eco→Low→Med→High.

Functional Mode ②
ON/OFF
Press and hold the Functional switch for 0.5 seconds, the lamp will be activated at Red (no memory circuit), press and hold any switch for 0.5 seconds to turn off the lamp.

Output Selection
With the lamp switched on, single click the Functional switch to cycle through Red→SOS→Red flash.

Mode Switching
With the lamp on General mode, single click the Functional switch to enter Functional mode.
With the lamp on Functional mode, single click the General switch to enter General mode.

Burst Mode ①
In any status, press and hold the any switch for 1.2 seconds to enter Burst mode. The lamp will exit Burst mode after 1 minute or by any other operation.

Lockout Function
Lock: with the lamp switched off, press any switch or simultaneously press the two switches for 3 seconds. Lamp will switch off and 4 2Hz blinks will indicate locked status.

Unlock: with the lamp switched off, simultaneously press the two switches for 3 seconds. The lamp will be unlocked and activated on Red after 4 2Hz blinks.

Locked Status
In locked status, clicking or pressing the headlamp will activate 42Hz blinks on Red to indicate locked status.

Power Supply

The built-in 1000mAh Li-polymer battery is irreplaceable, and Micro USB rechargeable.
Note: Recharge a stored headlamp every four months to maintain optimum performance of the battery in case the lamp could be damaged by electrolyte leakage or battery explosion.

Charging

Operation ④
Uncover the anti-dust cap and plug the Micro USB side of the charging cable into the charging port of the lamp. The normal charging time is about 2.5 hours.

Indication ③
  • One flashes: lower than 20%
  • One constant on, one flashes: 20% – 50%
  • Two constant on, one flashes: 50% – 80%
  • Three constant on, one flashes: 80% – 95%
  • Four constant on: fully charged
Note: The headlamp can only be used on Low output when charging.

Battery Level Indication ③

When the lamp is turned off, single click the Functional switch, the battery level indicators will display the battery status for 3 seconds.

  • 4 constant-on blue : 80% – 100%
  • 3 constant-on blue: 60% – 80%
  • 2 constant-on blue: 40% – 60%
  • 1 constant-on blue: 20% – 40%
  • 1 flashes blue: lower than 20%
Note: The battery level indicators displays the battery status each time when the lamp is turned on on General mode.

Overheat Protection

The lamp will accumulate a lot of heat when used on Burst mode for extended periods. To avoid high surface temperature, it will automatically downshift to High output level to reduce temperature.

Headband Assembly ⑤

Notice: The headband is factory assembled by default.
Step 1: Attach the headband to the headlamp.
Step 2: Adjust the headband by sliding the buckle to required length.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the headlamp and will void the warranty.
  • Fenix strongly recommends using the brightness reasonably to maintain enough and extended runtime.
  • If the above methods don’t work, please contact your authorized distributor.

Included

1 x HL12R headlamp, 1 x Headband, 1 x Charging cable, 1 x User manual

Warning

The healamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone's eyes.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Operation Instruction

Spotlight Mode
Press and hold the for 0.5 seconds to turn ON/OFF the spotlight.
Single-click this button to cycle the spotlight through Low→Mid→High→Turbo.

Floodlight Mode
Press and hold the for 0.5 seconds to turn ON/OFF the floodlight.
Single-click this button to cycle the floodlight through Eco→Low→Mid→High.

Intelligent Memory Circuit

The headlamp automatically remembers the last brightness level used in the Spotlight and Floodlight mode, the next time it is turned on, it will recall the previously used brightness level.

Red Light

With the lamp off, single-click the , the lamp will cycle through Red Eco→Red Flash→OFF.

Battery Level Indicator

With the lamp off, single-click the to activate the battery level indicator, and it will last three seconds.

  1. Floodlight flashes: more than 70%.
  2. Floodlight and Red light flash alternately: between 30% and 70%.
  3. Red light flashes: lower than 30%.

Note: With the light on, if the Red light flashes automatically, it indicates that the battery power is critical, please replace the battery or recharge the lamp soon as possible.

Charging

  1. Uncover the USB cap, then plug the Micro-USB port of the charging cable into the USB power supplier.
  2. The indicator light goes red when in charging process.
  3. The indicator turns green when charging is completely done.
  4. Pluck the charging cable and then plug the USB cap covered.

Note: The charging function only works on 18650 Li-ion batteries.

Intelligent Over-heat Protection

The headlamp will accumulate a lot of heat when it is working at high output levels. To avoid high temperature of lamp surface.

  1. When the lamp is overheated up to 65℃ or above, the lamp will automatically adjust the output to prevent the lamp from overheating.
  2. When the temperature reduces, the output will return back to previously used output level.
  3. During this process, if full-power working is needed, please click the corresponding switch once again.

Battery Specifications

TyyppiKokoJänniteSoveltuus
Fenix ARB-L18 series
18650
3,6V/3,7V
Recommended
Non-rechargeable Battery (Lithium)
CR123A
3V
Usable
Rechargeable Battery  (Li-ion)
16340
3,7V
Banned
Rechargeable Battery (Li-ion)
18650
3,6/3,7V
Caution
Rechargeable Battery (LiFePO4)
16340
3,2V
Banned
Rechargeable Battery (LiFePO4)
186503,2V
Usable

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes. Quality Li-in battery with protective circuit will reduce risks. Fenix ARB-L18 Series battery i s recommended.

Battery Replacement

Unscrew the tail cap to insert the battery with the anode side (+) towards the lamp head, and then screw the tail cap.

Headlamp Strap Assembling

Asenna otsapanta valaisimeen pujottamalla pannan solki lampun kiinnityslenkkien läpi ja jonka jälkeen hihnan toinen pää pannan soljen läpi kääntäen tämän jälkeen soljen pää hihnaan pujottamalla hihna soljen keskiosan läpi.

Käyttö ja hoito

  • Disassembling the sealed head can cause damage to the headlamp and will void the warranty.
  • Excellent quality Fenix Li-ion batteries are strongly recommended for this high-power lamp.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the performance of the headlamp as dirty contacts may cause the headlamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  • Reason A: The batteries need replacing.
    Solution: Replace batteries (Please confirm the correct installation of anode and cathode).
  • Reason B: The threads, PCB board contact or other contacts are dirty.
    Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
  • If the above methods don’t work, please refer to the warranty policy before contacting your authorized distributor.

Included

HP25R headlamp x 1, Fenix 3,6V/2600mAh 18650 Li-ion battery x 1, spare O-ring x 1, micro USB cable x 1, user manual

Warning

The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the productis transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Usage

Switches

General switch: for on/off and output selection on General mode.

Functional switch: for on/off and output selection on Functional mode.

On/off

Press and hold either of the switches for 0.5 seconds to turn on/off the lamp.

Output Selection

General mode: single click the general switch to cycle through Eco→Low→Med→High→Turbo.

Functional mode: single click the functional switch to cycle through Low→Med→High→Red Light→SOS.

Lockout Function

Lock: when the lamp is switched off, press and hold either of the two switches or simultaneously press the two switches for 3 seconds, the lamp will blink red four times to indicate locked status.

Unlock: when the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 one-second red blinks and activated on Red Light.In locked status, clicking or pressing the switches will activate 4 one-second red blinks to indicate locked status.

Intelligent Memory Circuit

The headlamp memorizes the last selected output. When turned on again the previously used output will be recalled.

Battery Specifications

TypeDimensionNominal VoltageUsability
Fenix ARB-L21 Series217003,6VRecommended
Fenix ARB-L18 Series186503,6VUsable (with ALF-18 battery holder)
Non-rechargeable Battery (Lithium)CR123A3VBanned
Rechargeable Battery  (Li-ion)163403,6VBanned
Rechargeable Battery  (Li-ion)186503,6VBanned

*Warning: *Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement

Unscrew the cap to insert the battery in accordance with the polarity marks, then screw the cap back on.

Charging

  1. Uncover the cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
  2. The indicator will display red while charging and will turn green when fully charged.
  3. The normal charging time of the included Fenix ARB-L21-5000 21700 rechargeable Li-ion battery is about 4 hours with a 5V/2A adapter.
  4. When charging is complete, replace the anti-dust cap to ensure waterproof and dustproof ability.
  5. Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.
  6. When charging, the headlamp can be normally used, but charging time will be prolonged.

Battery Level Indication

With the lamp switched off, single click either of the switches to check the battery status, the indicator will last for 3 seconds.

  • Green light on: saturated 100% – 85%
  • Green light flashes: sufficient 85% – 50%
  • Red light on: poor 50% – 25%
  • Red light flashes: critical 25% – 1%

Note: This only works with Fenix ARB-L21 Series battery.

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at Turbo mode for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of Turbo mode.

Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the lamp blinks 3 times every 5 minutes to remind you to timely recharge or replace the battery.

Note: This only works with Fenix ARB-L21 Series battery.

Headband Assembly

Note: The headband is factory assembled by default.

Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
  • Fenix recommends using an excellent quality Fenix battery.
  • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
  • Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  • A: The battery needs replacing.
  • Solution: Replace the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
  • B: The contact point or contact of the battery or headlamp is dirty.
  • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
  • If the above methods don’t work, please contact the distributor.

Package includes

HP25R V2.0 headlamp, ARB-L21-5000 Li-Ion rechargeable battery, USB-C charging cable, helmet attachment hooks x 4 , cable chips x 3, spare O-ring, user manual

Warning

The healamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone's eyes.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Usage

On/off

With the lamp switched off, rotate the switch clockwise, the lamp enters spotlight mode.

With the lamp switched off, rotate the switch counterclockwise, the lamp enters floodlight mode.

With the lamp switched on, rotate the switch to the off state to turn off the lamp.

Mode Switching

Spotlight mode: on floodlight mode, rotate the switch clockwise to the off state, continuously rotate to enter spotlight mode.

Floodlight mode: on spotlight mode, rotate the switch counterclockwise to the off state, continuously rotate to enter floodlight mode.

Spot&flood Mode: on spotlight or floodlight mode, single click the side switch to enter spot&flood mode, click again to exit.

Output Selection

Spotlight mode: rotate the switch to cycle through Low ⇄Med ⇄High ⇄Turbo.

Floodlight mode: rotate the switch to cycle through Low ⇄Med ⇄High.

Spot&Flood mode: On spotlight mode, rotate the switch to cycle through Low ⇄Med ⇄High ⇄

On floodlight mode, rotate the switch counterclockwise to cycle through Low ⇄Med ⇄Note:

The lamp does not have an intelligent memory circuit, each time it is turned on, Low of the spotlight or Low of the floodlight will be activated.

Battery Specifications

TypeDimensionNominal voltageUsability
Fenix ARB-L21217003,6VRecommended
Fenix ARB-L18 (Li-ion)186503,6VUsable (with ALF-18 *)
Non-rechargeable Battery (Lithium)CR123A3VBanned
Rechargeable Battery (Li-Ion)163403,6VBanned
Rechargeable Battery (Li-ion)186503,6VBanned

*Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the headlamp or the batteries being used.* Fenix ARB-L18 Series rechargeable Li-ion battery can also be used together with the ALF-18 battery holder.* 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection. This will reduce the potential for combustion or explosion, but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement

Open the cap to insert the battery in accordance with the polarity marks, then replace the cap and fasten the latch.

Charging

  • Open the cap and plug the USB Type-C side of the charging cable into the charging port of the battery case.
  • In charging process, one indicator flashes: below 20%, one constant-on and one flashes: 20% – 50%, two constant-on and one flashes: 50% – 80%, three constant-on and one flashes: 80% – 95%, four constant-on: charging complete.
  • When charging is complete, replace the anti-dust cap to ensure the waterproof and dustproof ability.

Note:

1. The normal charging time of the Fenix ARB-L21-5000 battery is about 4.5 hours from depletion to full charging, with the lamp being switched off. When charging, on/off and output selection can be used.

2. Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.

Power Bank Function

  1. Switch off the lamp, plug the USB A socket of the charging cable into the battery case, and then connect another socket of the charging cable to the digital device.
  2. Single click switch next to the indicators to begin discharging (discharging current is 2A).
  3. In discharging process, four indicators flash: over 80%, three flash: 50% – 80%, two flash: 20% – 50%, one flashes: below 20%.
  4. When discharging complete, the indicators delay 30 seconds to go out to remind charging is complete. Be sure to close the anti-dust cover once charging is completed.

Battery Level Indication

With the lamp switched off, single click the switch to check the battery status, the indicators will last for 3 seconds.

  • Four constant on: 100% – 80%
  • Three constant on: 80% – 60%
  • Two constant on: 60% – 40%
  • One constant on: 40% – 20%
  • One flashes: critical 20% – 1%

Note: This only works with Fenix ARB-L21-5000 battery.

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high modes for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.

Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low mode is reached. When this happens in Low mode, the lamp blinks 3 times every 5 minutes to remind you to timely recharge or replace the battery.

Note: This only works with Fenix ARB-L21-5000 battery.

Headband Assembly

The headband is factory assembled by default.

Adjust the headband by sliding the buckle to the required length.

If the headband is stained with sweat and mud, it can be washed directly.

Options for Wearing Battery Pack

On headband: clip the battery case in the holder on the headband. The headlamp with battery pack may be attached on a helmet with the included helmet attachment hooks.

Belt-worn: clip the battery case into the included stainless steel belt clip, the battery pack can be belt-worn together with the extension cable.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
  • Fenix recommends using an excellent quality Fenix battery.
  • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
  • Take out the battery to prevent accidental activation during storage or transportation.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  • A: The battery needs replacing or recharging.
  • Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
  • B: The contact point or contact of the battery or headlamp is dirty.
  • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
  • If the above methods don’t work, please contact the distributor.

Includes

HP30R V2.0 headlamp, Fenix ARB-L21-5000 Li-Ion battery x 2, helmet clip x 4, cable buckle x 3, headband, charging cable USB-C, belt clip, spare O-ring, user manual.

Warning

The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.

This headlamp will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the headlamp. Pay attention to safe use to avoid scalding.

Do not shine an object at close range to avoid burning an object or causing harm due to high temperature.

The LED of this headlamp is not replaceable; so the entire lamp should be replaced when the LED reaches the end of its life.n.

Maahantuonti

Delotec Oy – Fenix Nordics, Ahjokatu 13, 40320 JYVÄSKYLÄ, 014 337 9460 info@fenixvalaisimet.fi, www.fenixvalaisimet.fi.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

HM50R otsalamppu

Specifications

  • Powered by one rechargeable 16340 Li-ion battery or one CR123A Lithium battery.
  • 67.5mm Length x 33mm Width x 28mm Height (including the lamp holder).
  • 63 grams (including the lamp holder and headband, but excluding the battery).
  • Reverse polarity protection, to protect from improper battery insertion.
  • Easy one-switch operation.
  • Micro USB rechargeable.
  • Can be used as a mini flashlight.
  • Perfect for rigid environments.
  • Sweat-blocking, reflective headband.
  • Made of quality aluminum; premium type III hard-anodized anti-abrasive finish.
  • Toughened ultra-clear glass lens with anti-reflective coating.
  • Accessories: spare O-ring, silicone holder, ARB-L16-700 battery.

Operating Instructions

On/Off

Press and hold the switch for 0.5 seconds to turn on/off the headlamp.

Output Selection

With the headlamp switched on, single click the switch to cycle through Low→Med→High→Turbo.

Note: The headlamp memorizes the last selected brightness. When turned on again the previously used brightness level will be recalled.

Battery level indication

With the headlamp switched off, single click the switch to display the battery level for 3 seconds in different colors:

  • Green constant on: more than 80%
  • Green flashes: 50% – 80%
  • Blue constant on: 20% – 50%
  • Blue flashes: less than 20%

Charging the HM50R Rechargeable Headlamp

Uncover the anti-dust cap and plug the Micro USB terminal of the charging cable into the charging port of the headlamp. Once you’re done recharging this headlamp, be sure to remove the charging cable and replace the anti-dust cap. The max charging current is 700mA, and the charging time is about 1.5 hours. The indicator displays blue when charging, and turns green when fully charged. The headlamp can only be used on Med output when charging.

Warning: Avoid charging non-rechargeable batteries.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically downshift to High output to reduce temperature. Reset to Turbo if needed.

Low Voltage Downshift

When the voltage of the 16340 battery in use drops lower than 3.0V, the low voltage downshift function will be activated. In this state the headlamp cannot be used on Turbo output and will only cycle through High, Med and Low.

Extended Runtime

The headlamp will automatically step down by a few lumens after being used for an extended period on any of the High, Med or Low outputs, to extend runtime and to guarantee illumination outdoors.

Use the HM50R as a Flashlight

Remove the tail cap and the battery, then remove the headlamp from the holder. Re-insert the battery and screw back the tail cap.

Battery Specifications

TypeDimensionsNominal VoltageUsability
Fenix ARB-L16-700
163403.6/3.7V
Recommended
Fenix ARB-L16-700U
16340
3.6/3.7V
Recommended
Non-rechargeable Battery (Lithium)
CR123A
3V
Usable
Rechargeable Battery  (Li-ion)
16340
3,7V
Usable
Rechargeable Battery (LiFePO4)
16340
3,2V
Usable*

* Warning: It is prohibited to charge LiFePO4 battery.

* Use only the recommended and usable batteries. If the lamp will not be used for an extended period, remove the battery, or the lampcould be damaged by electrolyte leakage or battery explosion.

Battery Replacement

Unscrew the tail cap to insert the battery with the anode side (+) towards the lamp head, then screw the tail cap back on.

Headlamp Holder Replacement

The headlamp holder is made of enhanced silicone, which gives it good anti-tearing ability and mechanical strength, and makes it resistant to low and high temperature, ultraviolet rays, acid and alkali corrosion. The material feels smooth to the touch and should not cause allergic reactions.

If the headlamp holder needs replacing, open the tail cap, remove the battery and the holder, and replace with the new spare holder.

Headband Assembly

Notice: The headband is factory assembled by default.

Usage and Maintenance

Disassembling the sealed head can cause damage to the lamp and will void the warranty.

  • Fenix recommends using an excellent quality batteries.
  • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:A: The battery needs replacing.
  • Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s   specifications).B: The threads, PCB board contact or other contacts are dirty.
  • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don’t work, please contact the distributor.

Included

HM50R headlamp, spare O-ring, spare rubber anti-dust cover, spare silicone holder, Fenix ARB-L16-700 Li-ion battery, charging cable, user manual.

Warning

The HM50R headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the headlamp directly into anyone’s eyes.

Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

Specifications

  • Luminus SST40 white and red LEDs, with a lifespan of 50,000 hours.
  • Powered by a 18650 (included) or 2 CR123A batteries.
  • Simple operation with large side switch.
  • Magnetic charging for easy and fast operation.
  • Battery level and charging indication.
  • Magnetic tail, right-angled lighting.
  • Made of quality aluminum and PC.
  • Digitally regulated circuit for maintaining a stable output.
  • Reverse polarity protection, to protect from improper battery insertion.
  • Intelligent memory circuit recalls the last used brightness level.
  • Size: 101 x 46 x 36 mm
  • Weight: 99,6 g (excluding battery)

Operating Instructions

On/Off

With the lamp switched off, press and hold the side switch for 0.5 seconds, the lamp will light up on the previously used output level of white light mode.

With the lamp switched off, press and hold the side switch for 1.2 seconds, the lamp will light up on Low output level of red light mode.

With the lamp switched on, press and hold the side switch for 0.5 seconds again to turn off the lamp.

Output Selection

In white light mode, single click the side switch to cycle through Eco→Low→Med→High→Turbo.

In red light mode, single click the side switch to cycle through Red Low→Red Med→Red Flash.

Mode Switching

With the lamp switched on, press and hold the side switch for 1.2 seconds to select white or red mode.

Lockout Function

Lock: With the lamp switched off, double click the side switch, the lamp will blink 3 times/2Hz on Eco of white light mode to indicate locked status.

Unlock: With the lamp is locked, double click the side switch, the lamp will be activated with 3 2Hz blinks on Eco of white light mode and activates on Low of white light mode.

Intelligent Memory Circuit

The lamp memorizes the last selected output excluding red light mode. When turned on again the previously used output of white light mode will be recalled.

Battery Specifications

TypeDimensionsNominal VoltageUsability
Fenix ARB-L18 series
18650
3,6V
Recommended
Non-rechargeable Battery
CR123A
3V
Usable
Rechargeable Battery (Li-ion)
16340
3,7V
Banned
Rechargeable Battery  (Li-ion)
18650
3,6/3,7V
Caution*
Rechargeable Battery (LiFePO4)
16340
3,2V
Usable
Rechargeable Battery (LiFePO4)
186503,2V
Banned

Warning: Use quality Li-ion battery with protective circuits. Fenix ARB-L18 Series battery is recommended.

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement

Unscrew the battery cover to insert the battery with the anode side (+) towards the inner side, then screw the battery cover back on.

Magnetic Absorption Charging

Connect the USB port of the charging cable to the power source, then hold the magnetic end of the charging cable close to the charging port of the headlamp. The charging cable will attach to the charging port automatically and charging will begin.

Note:
  • The rechargeable headlamp can be used while the it is being charged, but charging time will be prolonged.
  • The normal charging time of the Fenix ARB-L18-3500 battery is 4 hours from depletion to full charging.
  • Recharge a stored headlamp every four months to maintain optimal battery performance.
  • In charging process, the indicators besides the charging port of the cable will display different charging status. Red light constant on: not fully charged; green light constant on: fully charged.

Battery Level Indication

With the lamp switched off, single click the side switch, the battery level indicator in the middle of the switch will automatically display the battery status for 3 seconds.

  • Green constant on: 100% – 85%, saturated
  • Green flashes: 85% – 50%, sufficient
  • Red constant on: 50% – 25%, poor
  • Red flashes: 25% – 1%, critical
    Note:
    • This only works with 18650 rechargeable Li-ion battery.
    • The lamp can be switched on during this process.

    Low Voltage Warning

    When the battery level is detected critical for currently used output, the battery level indicator will flash to remind. Replace the battery or recharge the lamp as soon as possible.

    Intelligent Protection

    The lamp will accumulate a lot of heat when used for extended periods. When the light reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens due to protection mechanism in the design. When the temperature is reduced, the output will gradually return.


    Usage and Maintenance

        Disassembling the sealed head can cause damage to the lamp and will void the warranty.

    • Fenix recommends using an excellent quality Fenix 18650 battery.
    • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:A: The battery needs replacing.
    • Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s   specifications).B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don’t work, please contact the distributor.

    Included

    HM61R headlamp, Fenix ARB-L18-3400 battery, Magentic charging cable, Hallow headband, Hallow top headband, Headlamp mount, Spare O-ring, User manual.

    Warning

    The rechargeable headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Features

    • Spot and floodlight for various lighting demands.
    • Ultra-lightweight magnesium body.
    • 2 x Cree XM-L2 U2 white LEDs, with a lifespan of 50,000 hours.
    • Powered by one 18650 rechargeable Li-ion battery or two 3V/CR123A batteries.
    • Constant current circuit guarantees longer runtime.
    • Dual top switches for easy and fast operation.
    • Type-C charging, max. 1.5A large current.
    • Quality aluminum, magnesium and PC material, lightweight and durable.
    • Toughened ultra-clear glass lens with an anti-reflective coating.
    • IPX-68 rated dust and waterproof (underwater 2 m).
    • Size: 80.5 Length x 55 Width x 40 mm Height.
    • Weight: 97 grams (excluding battery).


    Switches

    Spotlight: for on/off, mode switching, lockout function and output selection on spotlight mode.

    Floodlight: for on/off, mode switching, lockout function and output selection on floodlight mode.

    On/off

    Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp. Med output level is set by default for first use. Afterwards, the light memorizes the last selected output, when turned on again the previously used output will be recalled.

    Mode switching

    Press and hold either of the two switches for 0.5 seconds to reach the corresponding mode.

    Output selection

    Spotlight mode: For the first use, single click the spotlight switch to cycle through Med→High I → High II → Turbo→Low. Afterwards, the light memorizes the last selected output.

    Floodlight mode: For the first use, single click the floodlight switch to cycle through Med→High→Low. Afterwards, the light memorizes the last selected output.

    Lockout Function

    Lock: With the lamp switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink 4 times on Low of floodlight mode to indicate locked status.

    Unlock: With the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 one-second blinks and activates on Low of floodlight mode.

    In locked status, clicking or pressing the switches will activate 4 one-second blinks to indicate locked status.

    Charging

    1. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp. Max charging current 1,5A.
    2. The normal charging time of the Fenix ARB-L18-3500 rechargeable Li-ion battery is about 3 hours with the lamp being switched off. When charging, Med output of spotlight or floodlight mode can be separately or simultaneously selected. The light will not automatically power on after full charging.
    3. In charging process, one indicator flashes: below 20%, one constant-on and one flashes: 21%-50%, two constant-on and one flashes: 51%-80%, three constant-on and one flashes: 81% – 95%, four constant-on: charging complete.
    4. Replace the anti-dust cap to ensure waterproof and dust proof ability.

    Battery Level Indication

    With the lamp switched off, single click either switch to check the battery status, single click once again the lamp will go out immediately, or without any operation the status will last for 3 seconds. There will be no response with the lamp locked.

    • Four lights on: 100% – 81%
    • Three lights on: 80% – 61%
    • Two lights on: 60% – 41%
    • One light on: 40% – 21%
    • One light flashes: 20% – 0%

    Battery Replacement

    Unscrew the battery cover anticlockwise to insert the battery with the anode side (+) towards the , then screw the battery cover back on.

    Battery Specification

    TypeDimensionsNominal VoltageUsability
    Fenix ARB-L18 Series
    18650
    3,6/3,7V
    Recommended
    Non-rechargeable Battery (Lithium)
    CR123A
    3V
    Usable
    Rechargeable Battery (Li-ion)
    16340
    3,6/3,7V
    Banned
    Rechargeable Battery (Li-ion)
    18650
    3,6/3,7V
    Caution
    Rechargeable Battery (LiFePO4)
    16340
    3,2V
    Banned
    Rechargeable Battery (LiFePO4)
    186503,2V
    Banned

    *18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.
    Quality Li-in battery with protective circuit will reduce risks. Fenix ARB-L18 Series battery i s recommended.


    Low Voltage Warning

    When the battery level is detected critical for currently used output, one of the indicator will flash to remind. Replace the battery or recharge the lamp as soon as possible.

    Headband Assembly

    Notice: The headband is factory assembled by default.

    1. Attach the headband to the headlamp as shown (Pic 1), by first sliding the band down to the bottom of the slots. Then hook the top edge under the top slot.
    2. Adjust the headband by sliding the buckle to required length.
    3. Assemble top headband to better fix the headlamp. First fix the headband mount to the headband, then fix one side of the top headband to the headlamp holder, and the other end to the top headband mount.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
    • Fenix recommends using an excellent quality Fenix 18650 battery.
    • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    • A: The battery needs replacing.
    • Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
    • B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don’t work, please contact the distributor.

    Included

    ARB-L18-3400 rechargeable li-ion battery, headband, top headband, headband mount, spare O-ring, charging cable

    Warning

    The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.

    Instructions and Troubleshooting

    1 First Time Use - Remove Battery Insulation

    2 Disamble Headband

    3 Headband Assembly (European Style)

    4 Light is Flashing - Unlock Buttons

    5 Flickering Status Lights - Entighten Battery Cap

    6 Lubrication of O-ring sealing

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Features

    • 1300 lumens maximum spotlight output and 500 lumens maximum floodlight output; 1500 lumens combined output when Turbo of spotlight and High of floodlight are simultaneously selected.
    • Uses Luminus SST40 white light LED and Cree XP-G3 S3 white light LED, with a lifespan of 50,000 hours.
    • Powered by one 18650 rechargeable Li-ion battery or two 3V/CR123A batteries.
    • Removable SPORT FIT system headband and top headband.
    • Toughened ultra-clear glass lens with an anti-reflective coating.
    • USB Type-C charging, 1.5A large current.
    • Lockout function avoids accidental activation.
    • Battery level indication for remaining battery level checking.
    • Dual top switch for easy and fast operation.
    • Quality aluminum, magnesium and PC material - lightweight and durable.
    • 3.15 ’’ x 1.85’’ x 1.54’’ / 80 x 47 x 39 mm.
    • 5.40 oz / 153 grams (including battery and headband).

    Switches

    Spotlight: for on/off, mode switching, lockout function and output selection on spotlight mode.

    Floodlight: for on/off, mode switching, lockout function and output selection on floodlight mode.

    On/off

    Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp. Med output level is set by default for first use. Afterwards, the light memorizes the last selected output, when turned on again the previously used output will be recalled.

    Mode switching

    Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp.

    Output selection

    Spotlight mode: For the first use, Eco output level is turned on by default. Single click the spotlight switch to cycle through Eco→Low→Med→High→Turbo.

    Floodlight mode: For the first use, Low output level is turned on by default. Single click the floodlight switch to cycle through Low→Med→High.

    Lock/Unlock

    Lock: With the lamp switched off, press and hold either of the two switches or simultaneously press the two switches for 3 seconds, the lamp will blink 4 times on Low of floodlight mode to indicate locked status.

    Unlock: With the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 one-second blinks and activates on Low of floodlight mode.

    In locked status, clicking or pressing either of the two switches will activate 4 one-second blinks to indicate locked status.

    Battery Replacement

    Unscrew the battery cover anticlockwise to insert the battery with the anode side (+) towards, then screw the battery cover back on.

    Charging

    1.  Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
    2. The normal charging time of the Fenix ARB-L18-3400 rechargeable Li-ion battery is about 3 hours from depletion to full charging with the lamp being switched off. When charging, Eco and Low of spotlight or Low of floodlight mode can be separately selected. The light will not automatically turn on after full charging.
    3. In charging process, one indicator flashes: below 20%, one constant-on and one flashes: 20%-50%, two constant-on and one flashes: 50%-80%, three constant-on and one flashes: 80% - 95%, four constant-on: charging complete.
    4. Replace the anti-dust cap to ensure waterproof and dustproof ability.

    Battery Level Indication

    With the lamp switched off, single click either of the two switches to check the battery status, single click once again the lamp will go out immediately, or without any operation the status will last for 3 seconds. There will be no response with the lamp locked.

    • Four lights on: 100% – 80%
    • Three lights on: 80% – 60%
    • Two lights on: 60% – 40%
    • One light on: 40% – 20%
    • One light flashes: 20% – 0%

    Note: This only works with Fenix ARB-L18-3400 rechargeable Li-ion battery.

    Battery Replacement

    Unscrew the battery cover anticlockwise to insert the battery with the anode side (+) towards the , then screw the battery cover back on.

    Battery Specification

    TypeDimensionsNominal VoltageUsability
    Fenix ARB-L18 Series
    18650
    3,6/3,7V
    Recommended
    Non-rechargeable Battery (Lithium)
    CR123A
    3V
    Usable
    Rechargeable Battery (Li-ion)
    16340
    3,6/3,7V
    Banned
    Rechargeable Battery (Li-ion)
    18650
    3,6/3,7V
    Caution
    Rechargeable Battery (LiFePO4)
    16340
    3,2V
    Banned
    Rechargeable Battery (LiFePO4)
    186503,2V
    Banned

    *18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.
    Quality Li-in battery with protective circuit will reduce risks. Fenix ARB-L18 Series battery i s recommended.

    Low Power Reminding

    When the battery level is detected critical for currently used output, one of the indicators will flash to remind to replace the battery or recharge the lamp as soon as possible.

    Intelligent Overheat Protection

    The light will accumulate a lot of heat when used at relatively high modes for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user to reselect the modes.

    Low-voltage Warning

    When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the headlamp blinks 3 times every 10 minutes to remind you to timely recharge or replace the battery.

    Note: This only works with Fenix ARB-L18-3400 rechargeable Li-ion battery.

    Headband Assembly

    Notice: The headband is factory assembled by default. Optional top headband strap can be attached to increase overall stability. All headbands are removable.

    Pull the rotary press-pull clasp up to loosen the headband; press the clasp, rotate it clockwise to shorten the headband.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
    • Fenix recommends using an excellent quality Fenix 18650 battery.
    • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
    • Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    • A: The battery needs replacing.
    • Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
    • B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don't work, please contact the distributor.

    Included

    Fenix HM65R SuperRaptor 2 Headlamp, ARB-L18-3400 rechargeable Li-ion battery, USB Type-C charging cable, Spare O-ring, User manual, Warranty card.

    Warning

    • The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.
    • This headlamp will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
    • Do not shine an object at close range, avoid burning the object or causing danger due to high temperature.
    • The LED of this headlamp is not replaceable; so the entire lamp should be replaced when the LED reaches the end of its life.
    • If any of the information provided in this manual is changed, the new version of the manual shall prevail; if your included user manual is an old one, it acquiesces that we won't send a new manual.

    Kiitos, että olet valinnut suorituskykyisen ja laadukkaan Fenix HM60R-otsalampun. Tässä käyttöohjeessa olevat käyttöä ja turvallisuutta koskevat ohjeet auttavat sinua hyödyntämään tuotetta mahdollisemman tehokkaasti. Lue käyttöohje huolellisesti ennen tuotteen käyttöä. Hävitä pakkausmateriaalit asianmukaisesti.

    Valaisimen käyttö

    Kytke valaisin päälle

    Paina ja pidä painonappia alaspainettuna 0,5 sekunttia jolloin lamppu syttyy kohdevalotilassa (suurempi poltin). Kaksoispainalla nappia siirtyäksesi toimintatilaan (pienempi poltin).

    Sammuta valaisin:

    Paina ja pidä painonappia alaspainettuna 0,5 sekunttia ja valaisin sammuu.

    Paina ja pidä kytkintä alaspainettuna 1,2 sekunttia ja voit siirtyä tilojen välillä (yleis- ja toimintotila).

    Kirkkaustilan valinta

    Valaisimen ollessa kohdevalotilassa, paina painonapista kerran toistuvasti siirtyäksesi eri kirkkaustilojen välilä seuraavassa kiertävässä järjestyksessä: Matala→Keski→Korkea→Turbo.

    Valaisimen ollessa toimintotilassa, paina painonapista kerran toistuvasti ja siirryt eri toimintotilojen välissä seuraavassa kiertävässä järjestyksessä Punainen→Keski→Korkea→SOS-vilkku.

    Viimeisen käyttötilan muistitoiminto

    Tämä valaisin muistaa aiemmin käytetyn kirkkaustilan kohdevalotilassa. Kun valaisin kytketään kohdevalotilassa seuraavan kerran uudestaan päälle, syttyy valaisin aiemmin käytetyssä kirkkaustilassa. Toimintotilassa siirrytään aina ensin punavalotilaan.

    Paristosuositus

    TyyppiKokoJänniteSoveltuus
    Fenix ARB-L18 sarja (Li-ion)186503,6VSuositus
    Ei-ladattava akkuparisto (Lithium)
    CR123A
    3V
    Soveltuu
    Ladattava akkuparisto (LiFePO4)163403,2VSoveltuu
    Ladattava akkuparisto (Li-ion)186503,6VSoveltuu, noudata varovaisuutta
    Ladattava akkuparisto (Li-ion)163403,6VEi sovellu
    Ladattava akkuparisto (LiFePO4)186503,2VEi sovellu

    Varoitus: 18650 Li-Ion akut sisältävä paljon energiaa ja niiden käyttö vaatii tarkkaavaisuutta. Käytettäessä LI-Ion akkuja on noudatettava erityistä varovaisuutta ja käytettävä vain suojapiirillä varustettuja paristoja sillä väärinkäyttö voi johtaa akunakun palovaaraan tai räjähtämiseen sekä henkilö- tai omaisuusvahinkoihin. Älä käytä akkua mikäli epäilet akussa vikaa tai se on rikkoutunut.

    Pariston vaihto

    Kierrä paristokorkin korkki auki ja aseta paristo paristokoteloon huomioiden asennussuunta, kierrä paristokorkki täysin kiinni.

    Askeltiheyden tunnistin

    Tässä valaisimessa on erityslaatuinen askeltiheyden tunnistin kohdevalotilan keski- ja korkean kirkkauden tehotiloissa.

    Askeltiheys on asetettu oletuksena tahtiin 150 askelta minuutissa. Askeltiheyden olessa 150 - 220 askelta/minuutissa, valon kirkkaus nousee suhteellisesti askeltiheyden kasvaessa. Askeltiheyden noustessa 220 askeleeseen/minuutissa, valaisimen kirkkautta nostetaan automaattisesti 150% yli normaalikirkkauden. Askeltiheyden noustessa yli 220 askelta/minuutissa, kirkkaus säilytetään 150%:ssa yli normaalikirkkaukden.

    Askeltiheyden olessa 80 - 150 askelta/minuutissa, valaisimen kirkkaus laskee suhteellisesti askeltiheyden mukaan. Askeltiheyden laskiessa 80 askeleeseen/minuutissa, kirkkaus on 70% normaalikirkkaudesta. Kun askeltiheys on alhaisempi kuin 80 askelta/minuutissa, valaisin toimii 70% kirkkaudella suhteessa normaalikirkkauteen. Kun valaisin huomaa askeltiheyden alenevan, vähentää se kirkautta asteittain 10 sekunnin viiveellä.

    Kaksoisvalokeila

    Tässä otsavalaisimessa on erityislaatuinen kaksoisvalolinssi. Kaksoisvalolinssin erityisominaisuutena on sen kyky valaista samanaikaisesti kauaksi säilyttäen ensiluokkaisen lähivalaisukyvyn jota ei pystyä saavuttamaan tavanomaisella linssillä.

    Valaisukulman säätö

    Tässä otsavalaisimessa on laaja 90-asteen valaisukulman säätö.

    Lataaminen

    1. Kierrä lampun painonapin puoleinen kierrekorkki (USB-merkintä) auki siihen asti kun näet USB C-latausportin ja liitä USB-johto varovasti liittimeen.
    2. Valaisimen latauksen merkkivalo palaa punaisena latauksen aikana ja se vaihtuu vihreäksi kun lataus on suoritettu.
    3. Tavanomainen latausaika tyhjästä täyteen on noin 3 tuntia (Fenix ARB-L18-2600 18650 Li-ion akku, latausvirta 5V/2A).
    4. Latauksen päätyttyä, kierrä pölynsuojakansi kiinni varmistaaksesi lampun pöly- ja vesitiiviys.
    5. Lataa lamppu joka neljäs kuukausi säilyttääksesi akun paras mahdollinen toimintavalmius.
    6. Latauksen aikana voidaan käyttää lampun matalinta kirkkaustilaa.
    7. Lamppu ei mene automaattisesti päälle latauksen päätyttyä.

    Jäljellä olevan varaustilan näyttö

    Valaisimen ollessa kiinni painamalla lyhyesti käyttökytkintä nähdäksesi jäljelläolevan paristovarauksen tila. Valo palaa 3 sekunnin ajan seuraavasti:

    • Vihreä LED-valo: täysi varaus 100% - 85%
    • Vihreä LED-valo: riittävä varaus 85% - 50%
    • Punainen LED-valo: alhainen varaus 50% - 25%
    • Vilkkuva punainen LED-valo: heikko varaus 25% - 1%

    Huomio: Ilmaisintoiminto toimii vain käytettäessä Fenix ARB-L18 sarjan Li-ion akuilla.

    Älykäs lämpötilan valvonta

    Lamppu lämpenee voimakkaasti etenkin silloin kun sitä käytetään Turbo-kirkkaustilassa. Tämä on normaalia. Lampun lämpötilan noustessa yli 55°C, siirtyy lamppu automaattisesti alempaan tehotilaan alentaen lämpötilaa. Lämpötilan laskiessa alle 55°C, voidaan lampun tehotilaa jälleen nostaa.

    Alhaisen paristojännitteen varoitus

    Paristojännitteen laskiessa valaisin on ohjelmoitu automaattisesti alentamaan portaittain kirkkaustilaa kunnes matalin tehotila saavutetaan. Kun tämä tapahtuu matalassa tehotilassa, vilkkuu merkkivalo 3 kertaa 5 minuutin välein muistutten akkupariston lataustarpeesta/vaihdosta. Vaihda tai lataa paristo.

    * = Toimii ainoastaa Fenix ARB-L180 akkuparistolla.

    Otsapannan kokoaminen

    1. Otsapanta on valmiiksi koottu tehtaalla.
    2. Säädä otsapannan pituus sopivaksi siirtämällä solkia.

    Huolto ja ylläpito

    • Älä pura valaisimen sinetöityä valaisinosaa. Valaisimen vaurioitumisvaara, takuun mitätöinti.
    • Fenix suosittelee käyttämään alkuperäisiä laadukkaita Fenix 18650-L18 sarjan Li-ion akkuparistoja.
    • Jos valaisinta ei käytetä pitkään aikaan, poista paristot / akku, koska muuten on olemassa akkujen/pariston vuotamisvaara ja valaisimen vaurioitumisvaara.
    • Lataa Li-Ion akut joka neljäs kuukausi pitääksesi akun toimintakuntoisena.
    • Lampussa voidaan käyttää myös tyypin 18650 Li-Ion akkua mutta vain yhdessä paristosovittimen ALF-18 kanssa (myydään erikseen).
    • Käytä näppäinlukitusta tai poista paristo valaisimesta estääksesi valaisimen tahaton päällekytkeytyminen säilytyksen tai kuljetuksen aikana.
    • On täysin normaalia, että valaisimen O-rengastiiviste ja USB-latausportin suojatiiviste kuluvat käytön aikana. Mikäli tiivisteet ovat kuluneet, vaihda ne uuteen varmistaaksesi valaisimen vesitiiviys
    • Puhdista säännöllisin välein valaisimen kontaktipinnat epäpuhtauksista, etenkin silloin mikäli valaisin välkkyy tai ei syty. Useat syyt voivat johtaa valaisimen vilkkumiseen tai toimimattomuuteen kuten
    • Syy A: akku tulee ladata tai paristo vaihtaa
    • Ratkaisu: lataa akku tai vaihda paristot. Varmista akun/pariston oikea asennussuunta.
    • Syy B: Kierteet, PCB piirin pinta tai muut kontaktipinnat ovat likaantuneet
    • Ratkaisu: Puhdista kontaktipinnat nukkaamattoman liinan ja alkoholipitoisen puhdistusnesteen avulla.

    Mikäli et saa ongelmaa ratkaistua yllämainittujen toimenpiteiden avulla, ota yhteyttä jälleenmyyjään valaisimen korjaamiseksi.

    Toimitussisältö

    HM60R otsalamppu, pää- ja otsapanta, Fenix ARB-L18-2600 mAh ladattava akku, USB C-latausjohto, otsapannan solki , vaihdettava O-rengastiiviste, käyttöohje.

    Fenix takuu

    Fenix takuu kattaa tuotteen työ- ja materiaalivirheet takuuajan puitteissa. Valaisimella on viiden (5) vuoden ja akulla yhden vuoden (1) takuu ostopäivämäärästä. Lue lisää takuuehdoista.

    Varoitus

    • Älä suuntaa valoa koskaan suoraan kenenkään silmiin. Jos valonsäde osuu silmiin, silmät tulee sulkea tai pää kääntää poispäin valolähteestä.
    • Valaisin lämpenee voimakkaasti kun sitä käytetään pitkiä aikoja. Kiinnitä huomiota valaisimen turvalliseen käyttöön mm. palovamma.
    • Älä käytä valaisinta kohteiden lähelle kuten herkästi vaurioituvien tai syttyvien kuten tekstiilien tms. lähellä.
    • LED-emitteri ei ole vaihdettavissa; jos LED-emitteri joudutaan vaihtamaan, tulee koko valaisin vaihtaa.
    • Jos jokin tieto tässä käyttöohjeessa muuttuu, uusi käyttöohje korvaa aiemman.
    • Epäselvissä tapauksissa ota yhteyttä myyjään tai tuotteen maahantuojaan.

    Maahantuojan tiedot

    Delotec Oy – Fenix Nordics, Ahjokatu 13, 40320 JYVÄSKYLÄ, 014 337 9460, www.fenixvalaisimet.fi.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Product Features

    • 1600 lumens maximum output; 100 hours ultra-long maximum runtime.
    • A Luminus SST40 white light LED, an XP-G2 HE neutral white LED and two 2835 red light LEDs.
    • Included a 21700 Li-ion battery, a 18650 Li-ion battery can be used as well (together with an ALF-18 battery holder).
    • White, neutral white and red lights combined.
    • Toughened ultra-clear glass lens with an anti-reflective coating.
    • Hidden USB Type-C charging port supports 2A charging current.
    • Large thumb-sized switch for easy and fast operation.
    • Digitally regulated circuit for maintaining a stable output.
    • Size: 94.5 x 51x 46 mm.
    • Weight: 206 grams (including battery and headband).

    Operating Instruction

    On/off

    Press and hold the switch for 0.5 seconds to turn on/off the lamp.

    Mode Switching

    With the lamp switched off, single click the switch for 0.5 seconds to enter General mode, and double click the switch to enter Functional mode.

    Press and hold the switch for 1.2 seconds to enter the other mode.

    Output Selection

    In General mode, single click the switch to cycle through Low→Med→High→Turbo.

    In Functional mode, single click the switch to cycle through Red→Med→High→Red Flash.

    Lock/Unlock

    Lock: when the lamp is switched off, press and hold the switch for 3 seconds, the lamp will blink red 3times to indicate locked status.

    Unlock: when the lamp is locked, press and hold the switch for 3 seconds, the lamp will be activated with 3 one-second red blinks and activated on Red Light mode.

    In locked status, clicking the switch will activate 3 one-second red blinks to indicate locked status.

    Intelligent Memory Circuit

    The headlamp memorizes the last selected output. When turned on again the previously used outputwill be recalled.

    Battery Specifications

    TypeDimensionsNominal VoltageUsability
    Fenix ARB-L21 Series217003,6VRecommended
    Fenix ARB-L18 Series186503,6VUsable (with ALF-18 battery holder)
    Rechargeable Battery (Li-ion)163403,6VBanned
    Rechargeable Battery (Li-ion)186503,6VBanned
    Rechargeable Battery (LiFePO4)163403,2VBanned
    Rechargeable Battery (LiFePO4)186503,2VBanned

    Warning: *21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes..

    Battery Replacement

    Unscrew the cap to insert the battery in accordance with the polarity marks, then screw the cap back on.

    Charging

    Indication:The indicator on the battery case will display red while charging, and will turn to green when fully charged.

    * This only works with Fenix ARB-L21-5000 battery.

    1. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
    2. The normal charging time of the included Fenix ARB-L21-5000is about 4 hours with the lamp being switched off
    3. When charging is complete, replace the anti-dust cap to ensure the waterproof and dustproof ability.
    4. Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.
    5. When charging, the Med output level of General mode can be used. The headlamp will not automatically power on after full charging.

    Battery Level Indication

    With the lamp switched off, single click the switch to check the battery status, the indicator will last for 3 seconds.

    • Green light on: saturated 100% - 85%
    • Green light flashes: sufficient 85% - 50%
    • Red light on: poor 50% - 25%
    • Red light flashes: critical 25% - 1%

    Note: This only works with Fenix ARB-L21-5000 battery.

    Intelligent Overheat Protection

    The lamp will accumulate a lot of heat when used at relatively high output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the reselection of the modes.

    Low-voltage Warning

    When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the battery level indicator blinks to remind you to timely recharge or replace the battery.

    Note: This only works with Fenix ARB-L21-5000 battery.

    Headband Assembly

    1. The headband is factory assembled by default.
    2. Adjust the headband by sliding the buckle to the required length.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
    • Fenix recommends using an excellent quality Fenix battery.
    • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
    • Loosen the cap or take out the battery to prevent accidental activation during storage or transportation.
    • Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    • A: The battery needs replacing.
    • Solution: Replace the battery (Ensure battery is inserted according to the manufacturer’s specifications).
    • B: The contact point or contact of the battery or headlamp is dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don't work, please contact the distributor.

    Included

    Fenix HM70R headlamp, ARB-L21-5000 Li-ion battery, USB Type-C charging cable, Spare O-ring, User manual, Warranty card

    Warning

    • The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.
    • This headlamp will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
    • The LED of this headlamp is not replaceable; so the entire lamp should be replaced when the LED reaches the end of its life.
    • All information provided in this manual is subject to change without prior notice.

    Importer

    Delotec Oy – Fenix Nordics, Ahjokatu 13, 40320 JYVÄSKYLÄ, FINLAND, +358 14 337 9460, www.fenixvalaisimet.fi.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Usage

    On/off

    With the light unlocked and switched off, press and hold the switch for 0.5 seconds to turn on the light.

    With the light switched on, press and hold the switch for 0.5 seconds to turn off the light.

    Output Selection

    In general mode, single click the switch to cycle through Eco→Low→Med→High→Turbo.

    Mode Switching

    In general mode, press and hold the switch for 1.2 seconds to enter strobe; single click the switch again to turn back to the last used output in general mode.

    Lock/Unlock

    Lock: with the light unlocked and switched off, double click the switch to lock the light, the light will blink twice on Eco to indicate locked status.

    Unlock: with the light locked and switched off, double click the switch, the light will be unlocked and activated on Eco. In locked status, clicking or pressing the switch will activate 2 one-second blinks on Eco to indicate locked status.

    Battery Specifications

    TypeDimensionsNominal Voltage
    Fenix ARB-L21217003,6V

    *Note: It is recommended to use Li-ion power battery, or the 10,000 lumens maximum output may not be reached. ** 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

    Battery Replacement

    Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

    Intelligent Memory Circuit

    The light memorizes the last selected output of general mode. When turned on again the previously used output of general mode will be recalled.

    Intelligent Overheat Protection

    The light will accumulate a lot of heat when used on Med, High, Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user to reselect Med, High, Turbo mode.

    Alhaisen varaustilan toiminto

    Akkupariston jännitteen laskiessa on valaisin ohjelmoitu laskemaan tehoja alemmalle tehotilalla kunnes Eco-teho asetus on saavutettu. Eco-tehotilassa valaisimen paristo virran ilmaisin vilkkuu punaisena merkkinä valaisimen lataamistarpeesta. Valaisin pyrkii toimimaan mahdollisimman pitkää ja se sammuu vasta akun virran täysin ehdyttyä.

    Low Voltage Warning

    When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks to remind you to recharge or replace the battery.

    Battery Level Indication

    With the light switched off, single click the switch to check the battery status, the indicator will last for 3 seconds.

    • Green light on: saturated 100% – 85%
    • Green light flashes: sufficient 85% – 50%
    • Red light on: poor 50% – 25%
    • Red light flashes: critical 25% – 1%

    Note: The indicator will display for 3 seconds each time the general mode is switched on.

    Charging

    1. First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
    2. The indicator will display red while charging, and will turn to green when fully charged.
    3. Once charging is completed, be sure to close the anti-dust cover.

    Note:
    Only Eco output level is available when charging.
    The normal charging time is approximately 3 hours and 30 minutes from depletion to full charging.
    Recharge a stored light every four months to maintain optimum performance of the battery.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the light and will void the warranty.
    • Fenix recommends using an excellent quality batteries.
    • If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage or battery explosion.
    • Lock the light or remove the batteries to prevent accidental activation during storage or transportation.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    • A: The battery needs replacing.
    • Solution: Replace battery pack /batteries (Ensure batteries are inserted according to the manufacturer’s specifications).
    • B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don’t work, please contact your authorized distributor.

    Package includes

    Fenix LR35R flashlight, ARB-L21-4000P rechargeable Li-ion battery x 2 pcs, USB Type-C charging cable, holster, lanyard, spare O-ring , user manual.

    Warning

    This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes. This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to avoid scalding. All information provided in this manual is subject to change without prior notice.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Features

    • USB Type-C fast charging port, quickly ready for outdoor activities.
    • USB discharging function, backup for digital devices as you like.
    • Pocket searching flashlight – Handheld comfort, portable convenience.
    • Featuring spotlight and floodlight for various lighting scenes.
    • Cree LEDs, with a lifespan of 50,000 hours.
    • Powered by 4*18650 rechargeable Li-ion battery pack, 1 to 4 18650 battery can be used.
    • 12000 lumens super performance, 773 meters ultra-long beam distance (when max output of spot- and floodlight are simultaneously selected).
    • Battery level indication and low-voltage warning keep the battery status updated.
    • Fast lockout function.
    • Dual side switches for easy and fast operation.
    • Digitally regulated output maintains constant brightness.
    • Reverse polarity protection, to protect from improper battery insertion
    • Made of durable high-strength and oxidation-resistance aluminum
    • Toughened ultra-clear glass lens with an anti-reflective coating

    Switches

    Floodlight: for on/off, output selection on floodlight mode, strobe and SOS.

    Spotlight: for on/off and output selection on spotlight mode.

    On/Off

    With the light switched off, press and hold the floodlight switch for 0.5 seconds to enter floodlight mode on previously used output.

    With the light switched off, press and hold the spotlight switch for 0.5 seconds to enter spotlight mode on previously used output.

    On floodlight mode, press and hold the floodlight switch for 0.5 seconds to turn off floodlight mode.

    On spotlight mode, press and hold the spotlight switch for 0.5 seconds to turn off spotlight mode.

    With the light switched on, press and hold the spotlight switch for 1.2 seconds to simultaneously turn off both modes.

    Mode Switching

    1. Spot and floodlight modes can be simultaneously or independently operated. Strobe and SOS are only accessed via the floodlight switch.
    2. Press and hold the floodlight switch for 0.5 seconds to enter floodlight mode; press and hold the spotlight switch for 0.5 seconds to enter spotlight mode.
    3. In any status, press and hold the floodlight switch for 1.2 seconds to enter strobe, single click the floodlight switch to enter SOS, single click the floodlight switch again to turn back to the previously used output level on floodlight mode.
    4. In strobe and SOS mode, single click spotlight switch to turn back to the previously used output level.

    Output Selection

    Floodlight: With the light switched on, single click the floodlight switch to cycle through Low→Med→High I→High II→Turbo.

    Spotlight: With the light switched on, single click the spotlight switch to cycle through Eco→Low→Med→High.

    Lockout Function

    Lock: With the the light switched off and unlocked, simultaneously press the two switches for 3 seconds, the light will blink 2 times on Eco of spotlight mode to indicate locked status.

    Unlock: With the light locked, simultaneously press the two switches for 3 seconds, the light will be activated on ECO of spotlight mode.

    In locked status, clicking or pressing the switches will activate 2 one-second blinks to indicate locked status.

    Charging

    Operation: USB Type-C port is used, and QC3.0, QC2.0 fast protocol or 5V adapter are supported, fast charging adapter will be auto identified.

    Indication: When charging, the charging indicators will flash from left to right to display battery and charging status. Only Eco and low output levels on spotlight mode are available when charging.

    Power Bank Function

    Operation:

    1. With the light switched off, single click any of the two switches to start discharging, discharging will be stopped in 8 seconds if no device is detected.
    2. The discharging will auto start with the light switched on.
    3. According to the fast charging protocol, QC, PE or 5V discharging will be selected, if load fast charging protocol will be auto detected.

    Indication: If load is identified, the indicators will recede from right to left to display the status. Note: When discharging, only Eco and low output level on spotlight mode can be used.

    Battery Level Indication

    With the light switched off, single click either switch to check the battery status, which will last for 8 seconds.

    • Four blue lights on: 100% – 80%
    • Three blue lights on: 80% – 60%
    • Two blue lights on: 60% – 40%
    • One blue light on: 40% – 20%
    • One blue light flashes: 20% – 0%

    Note: This works with the included Fenix ARB-L37-12000 battery pack.

    Battery Replacement

    Unscrew the tail cap to take out the battery pack, and insert a new Fenix ARB-L37-12000 battery pack or 1-4 18650 rechargeable Li-ion battery with the anode side (+) and the salient point towards the light head, and then screw the tail cap back on.

    Battery Specifications

    Type

    Dimensions

    Nominal VoltageUsability
    Fenix ARB-37-12000 battery pack
    18650
    3,6/3,7V
    Recommended
    Fenix ARB-L18-18650
    18650
    3,6/3,7V
    Recommended
    Rechargeable Battery (Li-ion)
    18650
    3,7V
    Caution*
    Non-rechargeable Battery (Lithium)
    CR123A
    3V
    Banned
    Rechargeable Battery16340
    3,7V
    Banned

    Warning: Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or the batteries being used.
    * 18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Quality batteries with circuit  protection will reduce the potential for combustion or explosion but cell damage or short circuiting are potential risks the user assumes.


    Intelligent Protection

    With the light switched on High I, High II or Turbo on Floodlight mode, the light will accumulate a lot of heat for extended periods. When the light reaches a temperature of 65℃ or above:

    1. Spot and floodlight both switched on (High output on Spotlight mode), the light will downshift to 1000 lumens.
    2. Spot and floodlight both switched on (no High output on Spotlight mode), the light will downshift to 1500 lumens.

    Time-limited downshift

    With the light switched on, if Turbo on floodlight mode is being selected for over 2 minutes or High II for over 5 minutes:

    1. If High on spotlight mode is selected, the light will downshift until to 1000 lumens.
    2. If High on spotlight mode is not selected, then the light will downshift until to 1500 lumens.

    Note: The above mentioned functions are specially designed for avoiding discomfort and danger caused by the light overheating.

    Low-voltage Warning

    When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the battery level indicator blinks blue to remind you to recharge or replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work until the battery level runs out or the protection circuit activates.

    Note: This only works with Fenix 18650 Li-ion battery.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the light and will void the warranty.
    • Fenix recommends using an excellent quality battery.
    • If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
    • Lock the light or take out the battery to prevent accidental activation during storage or transportation. Recharge a stored battery every four months to maintain optimal battery performance.
    • 1 – 4 18650 rechargeable Li-ion batteries can be used (Turbo may not be selected due to battery capacity) for emergency case: insert the batteries with the anode side (+) and the salient point towards the light head, and then screw the tail cap back on. The brightness, runtime and battery life may be compromised.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    • A: The batteries need replacing.
    • Solution: Replace batteries (Ensure batteries are inserted according to the manufacturer’s specifications).
    • B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don’t work, please contact your authorized distributor.

    Included

    LR40R flashlight, Fenix ARB-L37-12000 rechargeable Li-ion battery pack, USB Type-C charging cable, Lanyard, Holster,  Spare O-ring, User manual.

    Warning

    This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.


    Operating

    On / Off
    Rotate the mechanical side switch to the right side to turn on the light; rotate the mechanical side switch to OFF mode to turn off the light.

    Output Selection
    Rotate the mechanical side switch to cycle through OFF⇄Low⇄Med⇄High⇄Turbo.

    Strobe
    Rotate the mechanical side switch to the rightmost position to enter strobe mode.

    Battery Specifications

    TypeDimensionsNominal VoltageUsability
    Fenix ARB-L21 (21700) -series
    21700
    3,6V
    Recommended
    Rechargeable battery (Li-ion)
    21700
    3,6V
    Caution
    Rechargeable battery (Li-ion)
    18650*
    3,6V/3,7V
    Banned

    Warning: Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or to the batteries being used.
    * =18650 battery can be used when used in conjunction with an ALF-18 Battery Holder (sold separately).

    21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

    Battery Replacement

    1. Unscrew the light body.
    2. Insert the battery with the anode side (+) towards the light head.
    3. Screw the light body back on.
    4. Test functionality.

    Charging

    First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light. The indicator will display red while charging, and will turn to green when fully charged. Once charging is completed, be sure to close the anti-dust cover. (The light features inner waterproofing treatment, thus the performance won’t compromise even if there is water in the charging port).

    NOTE: The normal charging time of the included Fenix ARB-L21-5000 rechargeable Li-ion battery is approximately 3 hours from depletion to full charging.

    Recharge a stored light every three months to maintain optimum performance of the battery.

    The relatively low output is available while charging, but the charging time will be prolonged.

    Battery level indication

    When the light is switched on, the battery level indicator inside besides the charging port will light up to display the battery status, the indicator will stay on for 3 seconds before it goes off.

    • Green light on: saturated 100% – 85%
    • Green light flashes: sufficient 85% – 50%<
    • Red light on: poor 50% – 25%
    • Red light flashes: critical 25% – 1%

    NOTE: This only works with Fenix ARB-L21 Series 21700 rechargeable Li-ion battery.

    Intelligent Protection

    The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down by a few lumens until to Med to reduce temperature. When the temperature is reduced, the output will gradually return.

    Low-voltage Warning

    When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the indicator next to the charging port will flash red to remind you to recharge or replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely.

    NOTE: This only works with Fenix ARB-L21 Series 21700 rechargeable Li-ion battery.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the light and will void the warranty.
    • Fenix recommends using an excellent quality battery.
    • If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
    • Li-ion battery needs to be charged even if the battery is not exhausted, charge immediately when the battery is exhausted; it has no memory effect.
    • Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
      A: The battery needs replacing.
      Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
      B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
    • If the above methods don’t work, please contact your authorized distributor.

    Package includes

    PD40R V2.0 rechargeable flashlight x 1 pcs, wristlanyard x 1 pcs, Fenix ARB-L21-5000 power battery x 1 pcs, holster x 1 pcs, USB-C charging cable x 1 pcs, spare O-ring x 1 pcs, user manual.

    Warning

    This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.

    This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Operating Instructions

    On/off
    Tap the tail switch to momentarily activate the light (release and the light will go out), fully press to constantly activate the light, press again to turn off the light.
    Output Selection
    With the light switched on, single click the side switch to cycle through Low→Med→High→Turbo.
    Strobe
    With the light switched on, press and hold the side switch for 0.8 seconds to enter strobe, single click the side switch again to turn back to the previously used general mode.

    Intelligent Memory Circuit

    The light memorizes the last selected brightness level on general mode (excluding strobe). When turned on again the previously used brightness level will be recalled.

    Battery Specifications

    TypeDimensionsNominal Voltage
    Usability
    Fenix ARB-L21 Series
    21700*3,6V
    Recommended
    Fenix ARB-L18 Series
    18650*
    3,6
    Usable

    1. The Fenix dedicated ALF-18 battery holder must be used together when using 18650 Li-ion battery.
    2. Do not use CR123A or 16340 battery. Doing so may cause damage to the flashlight or the battery being used.
    *18650 /21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

    Battery Replacement

    Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

    Battery level indication

    When the light is switched on, the battery level indicator inside the side switch will light up to display the battery status, the indicator will stay on for 3 seconds before it goes off.

    • Green light on: saturated 100% – 85%
    • Green light flashes: sufficient 85% – 50%
    • Red light on: poor 50% – 25%
    • Red light flashes: critical 25% – 1%

    Note: This only works with Fenix ARB-L21 Series 21700 and Fenix ARB-L18 Series 18650 rechargeable Li-ion battery.

    Intelligent Protection

    The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down by a few lumens to reduce temperature, until it reaches the output of 800 lumens. When the temperature has been reduced, the output will gradually return to Turbo.
    Note: The above data is the test results given by Fenix through its laboratory testing. The true performance may vary according to different working environments.

    Low-voltage Warning

    When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the indicator in the mid of the side switch will flash red to remind you to recharge or replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely.
    Note: This only works with Fenix ARB-L21 Series 21700 and Fenix ARB-L18 Series 18650 rechargeable Li-ion battery.

    Usage and Maintenance

    • Disassembling the sealed head can cause damage to the light and will void the warranty.
    • Fenix recommends using an excellent quality battery.
    • If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
    • Li-ion battery needs to be charged even if the battery is not exhausted, charge immediately when the battery is exhausted; it has no memory effect.
    • Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:A: The battery needs replacing.
    • Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s   specifications).B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.


    If the above methods don’t work, please contact your authorized distributor.

    Included

    HT18 flashlight, Fenix ARB-L21-5000U USB rechargeable 21700 Li-ion battery, USB Type-C charging cable, holster (length adjustable), ALF-18 battery holder, red light filter adapter, green light filter adapter, spare rubber switch boot, lanyard, spare O-ring, user manual.

    Warning

    • This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.
    • This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.

    Thank you for purchasing a Fenix product. These are usage instructions to help you familiarize yourself with your new purchase. All the documents accompanying the product must be read before using the product, preserved carefully and if the product is transferred to a third party, the documents must be handed over as well. This ensures that maximum benefit of the product. Please read this manual carefully and note the warnings and guidelines.

    Specifications

    • Included a Fenix ARB-L21-5000U USB rechargeable 21700 Li-ion battery (with Type-C charging port).
    • A 18650 rechargeable Li-ion battery can be used as well together with the ALF-18.
    • Stainless steel strike bezel inlaid 3 tungsten steel breaking tips.
    • Digitally regulated circuit for maintaining a stable output.
    • Low-voltage warning alerts when battery replacement needed.
    • Reverse polarity protection prevents improper battery insertion.
    • Anti-roll and anti-slip body design.
    • Instant power activation with momentary tactical tail switch.
    • Simple output selection with side switch.
    • Made of A6061-T6 aluminum.
    • Premium type HAIII hard-anodized anti-abrasive finish
    • Toughened ultra-clear glass lens with an anti-reflective coating.
    • Size: 150 mm x 40 x 25,4 mm
    • Weight: 150 g (excluding battery)

    Operating Instructions

    Switches

    The tail switch of the TK22 UE is the tactical switch and the side switch is the functional switch.

    ON/OFF

    Tap

    Slightly tap the tactical switch to momentarily turn on the light, release it to turn the tactical light off.

    Fully press

    Fully press the tactical switch to fully turn on and lock the light, press once again to unlock and turn off the light.

    Output Selection

    With the light switched on, single click the functional switch to cycle through Turbo→Low→Med→High.

    Strobe

    With the light switched on, press and hold the functional switch for 1 second to enter strobe, The light will flash at a frequency of 6Hz and 15hz every 2 seconds. Click once again to return back to General mode.

    Intelligent Memory Circuit

    The TK22 UE flashlight will memorize the last selected output (excluding strobe.) When turned on again the previously used output will be recalled.

    Overheat protection

    The light will accumulate a lot of heat when used on Turbo for extended periods. To reduce the temperature, the light will automatically downshift to High when it has been used on Turbo for 15 minutes. When the temperature is reduced, Turbo mode can be reselected.

    Battery Specifications

    TypeDimensionsNominal VoltageUsability
    Fenix ARB-L21 Series
    21700*3,6V
    Recommended
    Fenix ARB-L18 Series
    18650*
    3,6V
    Usable
    Warning: It is not recommended to use the CR123A or 16340 battery. Fenix 18650 or 21700 Li-ion battery is recommended for maintaining perfect lighting performance. The Fenix dedicated ALF-18 battery holder should be used together when using 18650 Li-ion battery.

    *18650 /21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

    Battery Replacement

    Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

    Usage and Maintenance of the TK22 UE Flashlight

    • Disassembling the sealed head can cause damage to the light and will void the warranty.
    • Fenix recommends using a high quality battery.
    • If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
    • Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation. Recharge a stored battery every four months to maintain optimal battery performance.
    • When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the flashlight blinks three times every five minutes to remind you to replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely.
    • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
    • Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently, or even fail to illuminate for the following reasons:
    • A: The battery needs replacing.
    • Solution: Replace battery (ensure battery is inserted according to the manufacturer’s specifications).
    • B: The threads, PCB board contact or other contacts are dirty.
    • Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

    If the above methods don’t work, please contact your authorized distributor.

    Included

    Fenix TK22 UE flashlight, ARB-L21-5000U USB rechargeable li-ion battery, USB type-C charging cable, lanyard, holster (length adjustable), spare O-ring, ALF-18 battery holder, user manual.

    Warning

    This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.


    Available accessories

    TypeModel
    21700 Rechargeable Li-ion batteryFenix ARB-L21-5000U
    18650 Rechargeable Li-ion batteryFenix ARB-L18-3500U
    Diffuser tipAOT-M
    Traffic wandAOT-L
    Filter adapterAOF-L
    Bike mountALB-10
    Belt clipAB02
